Aluminum nitride ceramic powder is characterized by high thermal conductivity, high coefficient of thermal expansion, and excellent electrical properties (dielectric constant, dielectric loss, volume resistivity, dielectric strength).
Product details:

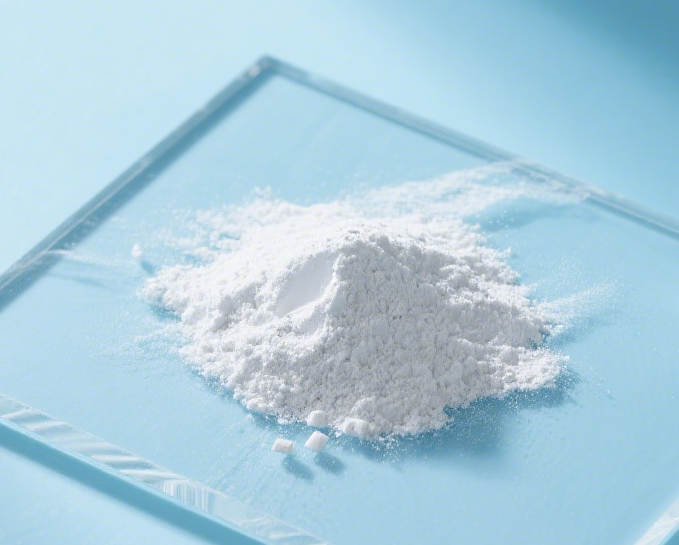

High Purity AlN Poweder for Electronic Information
Product description:
High-purity aluminum nitride powder is an indispensable key basic material for the modern electronic information industry, especially for high-power density, high-frequency, miniaturized, and high-reliability electronic equipment and systems.
Material Properties:
|
检测项目 Item |
H-E（E级） | H-G（A级） | H-B（B级） | |
|
粒径D50（um） Particle size |
1.3~1.4 | 1.2~1.5 | 1.2~1.5 | |
|
比表面积（㎡/g） Specific surface area |
2.3~2.9 | 2.3~2.9 | 2.3~2.9 | |
|
杂质含量 Impurity |
O(wt%) | ＜0.75 | ＜0.85 | ＜0.9 |
| C(ppm) | ＜300 | ＜400 | ＜400 | |
| Fe(ppm) | ＜5 | ＜10 | ＜30 | |
| Si(ppm) | ＜30 | ＜100 | ＜350 | |
| Ca(ppm) | ＜400 | ＜400 | ＜400 | |
Company Advantage:
Huaqing founded in 2004, with sum investment of 80 million RMB, registered capital 40 million RMB. Huaqing's AlN & Al2O3 ceramic products have high thermal-conductivity, low dielectric constant, good dissipation factor and excellent mechanical property compared with the other factories in the industry. AlN & Al2O3 ceramic are widely used in HBLED, opto-communication, IGBT, power devices, TEC and the other high-end applications.
Workshop&Equipment:
Packaging&Delivery:
Deliver by UPS,DHL,Fedex etc.
